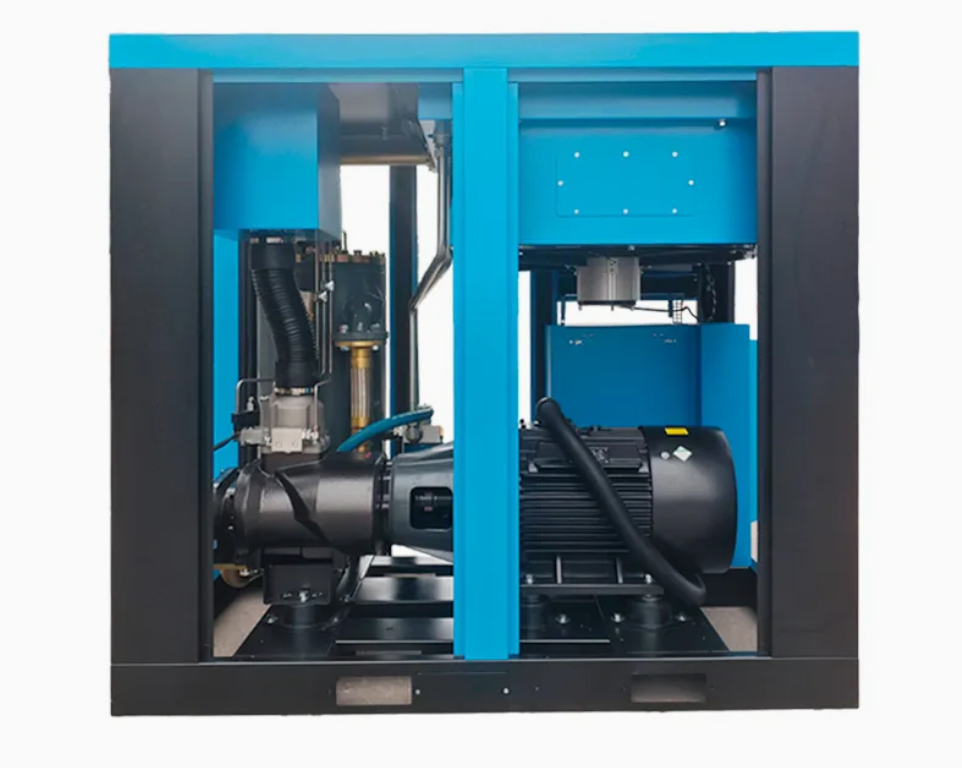

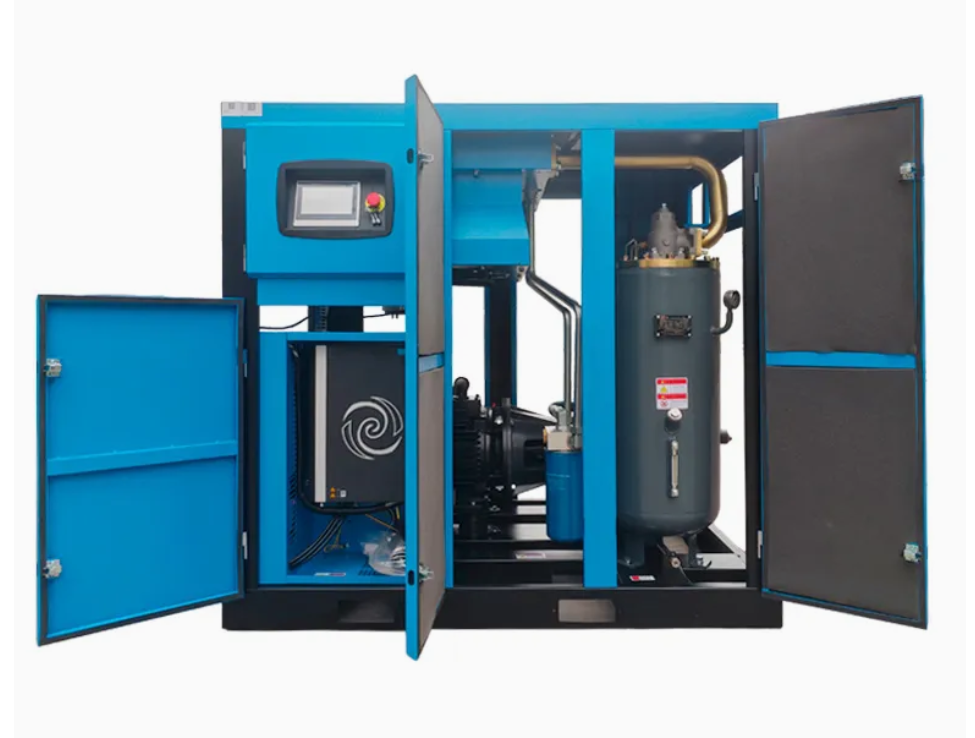

The permanent magnet variable frequency unit adopts an entirely new design, perfectly combining a high-efficiency permanent magnet motor with a high-efficiency main unit. Through the advanced speed regulation and frequency conversion technology of the inverter, it can significantly reduce the customer's operating costs while providing stable and reliable compressed air.
Permanent magnet variable frequency screw air compressor technical parameters/Technical parameter
Model
| Power
(kw) | Pressure
(Mpa) | Volume flow
(m3/min) | Pipe Diameter
| Weight
(kg) | Dimension
(mm) |
WA10AM | 7.5 | 0.8 | 1.1 | G1/2 | 180 | 700*600*850 |
1.0 | 0.9 |
1.3 | 0.7 |
WA15AM | 11 | 0.8 | 1.7 | G3/4 | 300 | 1000*750*1070 |
1.0 | 1.6 |
1.3 | 1.0 |
WA20AM | 15 | 0.8 | 2.3 | G3/4 | 320 | 1000*750*1070 |
1.0 | 2.1 |
1.3 | 1.7 |
WA30AM | 22 | 0.8 | 3.4 | G1 | 420 | 1100*850*1110 |
1.0 | 3.2 |
1.3 | 2.5 |
WA40AM | 30 | 0.8 | 4.7 | G1 | 450 | 1100*850*1110 |
1.0 | 4.0 |
1.3 | 3.1 |

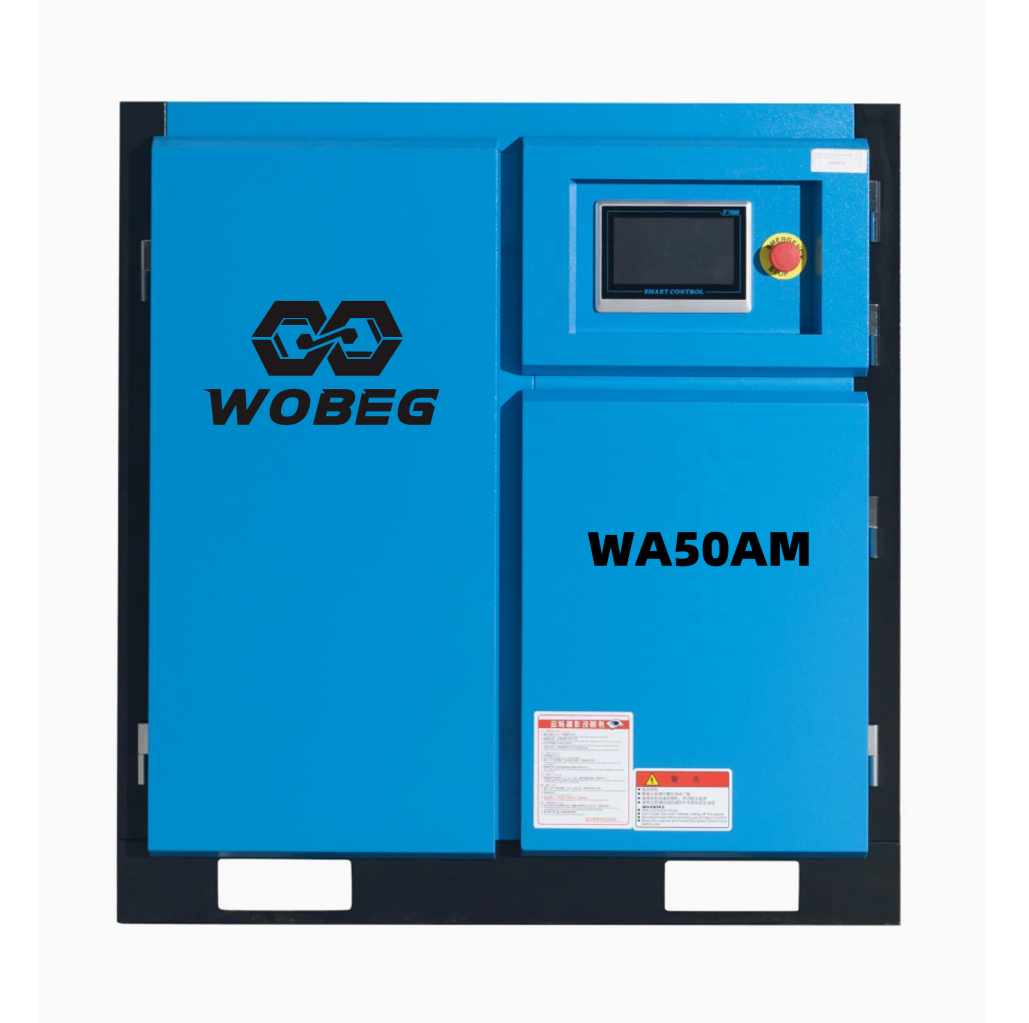

WA50AM | 37 | 0.8 | 6.4 | G1 1/2 | 600 | 1200*1000*1350 |
1.0 | 5.2 |
1.3 | 4.7 |
WA60AM | 45 | 0.8 | 7.3 | G1 1/2 | 700 | 1200*1000*1350 |
1.0 | 6.6 |
1.3 | 5.5 |
WA75AM | 55 | 0.8 | 9.4 | G2 1/2 | 850 | 1500*1230*1550 |
1.0 | 7.2 |
1.3 | 6.2 |
WA100AM | 75 | 0.8 | 12.3 | G2 1/2 | 950 | 1500*1230*1550 |
1.0 | 10.8 |
1.3 | 9.1 |
WA125AM | 90 | 0.8 | 15.2 | G2 1/2 | 1650 | 2100*1400*1650 |
1.0 | 12.3 |
1.3 | 11.4 |
WA150AM | 110 | 0.8 | 19.9 | DN65 | 2300 | 2250*1510*1850 |
1.0 | 16.3 |
1.3 | 14.5 |
WA180AM | 132 | 0.8 | 23.0 | DN65 | 2500 | 2250*1510*1850 |
1.0 | 19.7 |
1.3 | 16.0 |
WA220AM | 160 | 0.8 | 28.5 | DN100 | 4000 | 3250*2100*2200 |
1.0 | 22.8 |
1.3 | 21.5 |
WA250AM | 185 | 0.8 | 30.0 | DN100 | 4200 | 3250*2100*2200 |
1.0 | 27.0 |
1.3 | 23.0 |
WA270AM | 200 | 0.8 | 32.5 | DN125 | 5300 | 3550*2300*2300 |
1.0 | 29.2 |
1.3 | 25.5 |
WA300AM | 220 | 0.8 | 38.0 | DN125 | 5800 | 3550*2300*2300 |
1.0 | 33.0 |
1.3 | 28.8 |
WA350AM | 250 | 0.8 | 44.0 | DN125 | 6300 | 3760*2260*2200 |
1.0 | 41.0 |
1.3 | 35.5 |
