Applicable markets: Vacuum pump applications include: plastics, glass, bottling, canning, packaging, printing, papermaking, meat packaging, electronics, machinery, and more.
Screw vacuum pump technical parameters
Model | Maximum Pumping speed | Stalled pressure
| Applicable to ambient temperature range | Dimension | Noise
| Air inlet size
| Discharge port size
| Weight
|
m3/h | Mbar(a) | ℃ | （mm) | Db(A) | KG |
WAV06AM | 380 | 1 | 0-45 | 1200*1000*1200 | 65±3 | DN80 | DN80 | 800 |

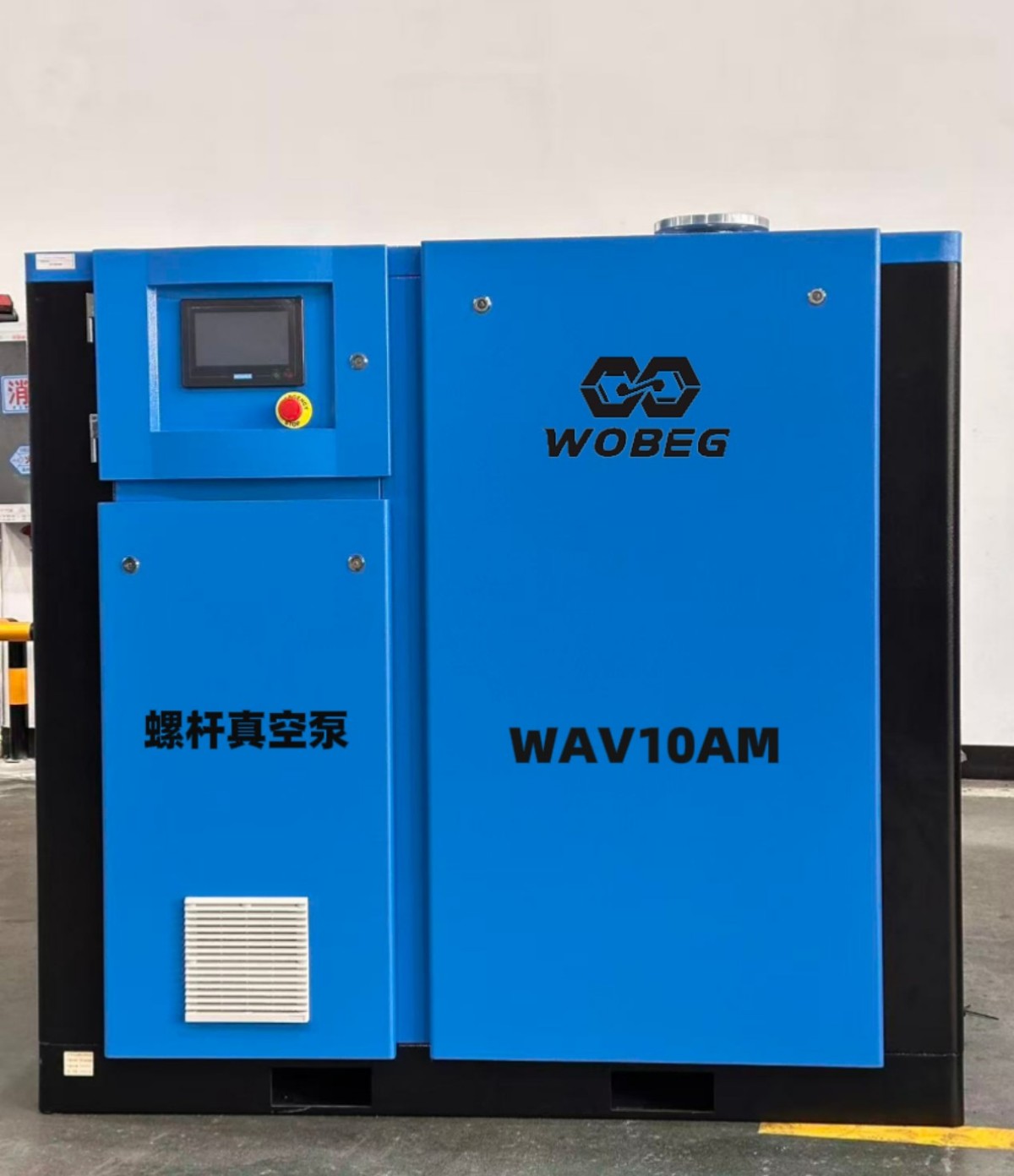

WAV10AM | 600 | 1300*1000*1300 | 870 |
WAV15AM | 740 | 1550*1060*1450 | 73±3 | DN100 | 980 |
WAV20AM | 900 | 1550*1060*1450 | 1000 |
WAV25AM | 1060 | 1600*1300*1780 | 75±3 | DN125 | DN100 | 1250 |
WAV30AM | 1300 | 1600*1300*1780 | 1300 |
WAV40AM | 1600 | 1700*1560*1700 | DN150 | DN125 | 1600 |
WAV50AM | 1800 | 1700*1560*1700 | 78±3 | 1700 |
WAV60AM | 2600 | 2300*1760*1850 | DN200 | DN150 | 1800 |
WAV75AM | 3200 | 2860*1750*2050 | 78±3 | | | 2000 |
