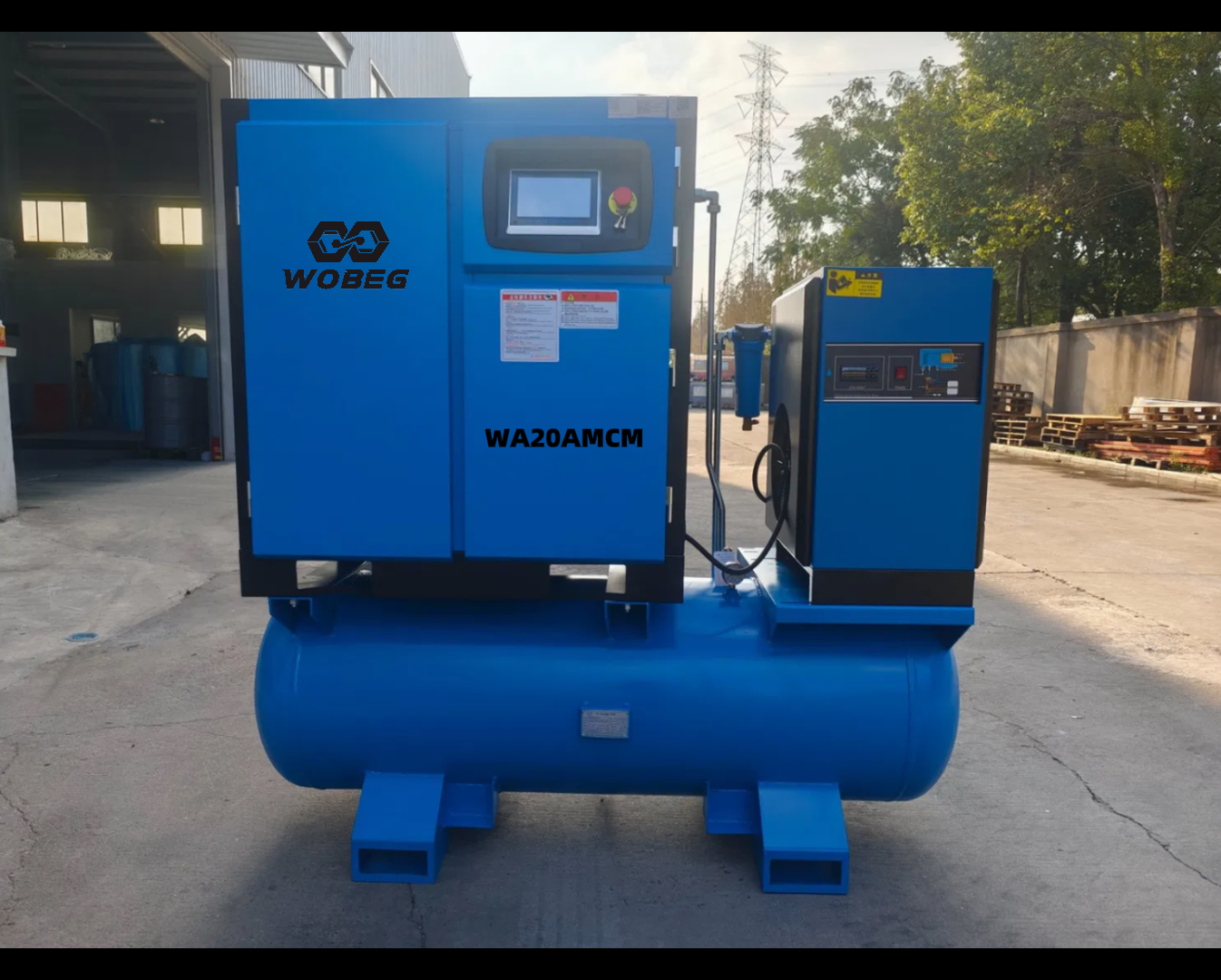

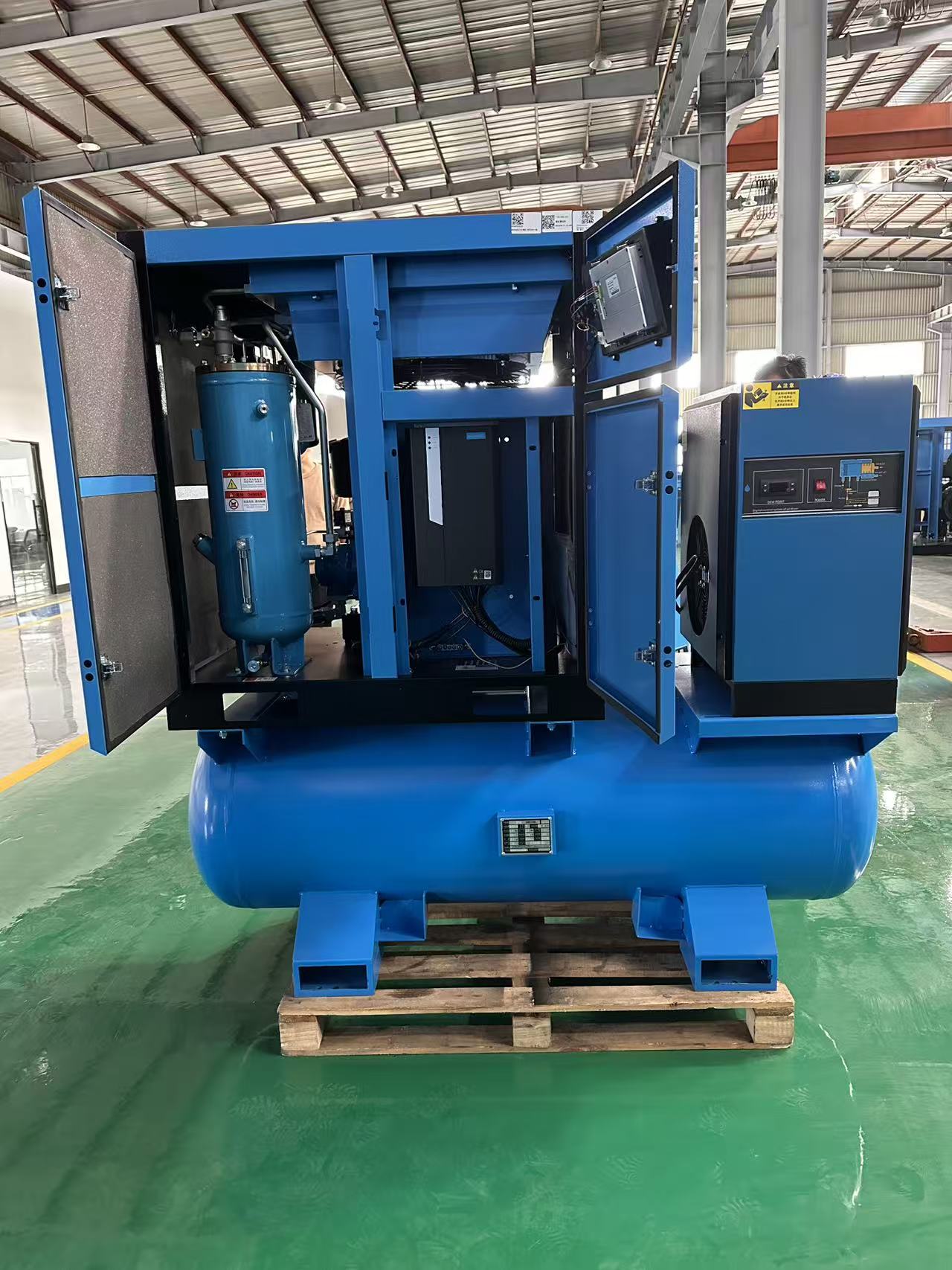

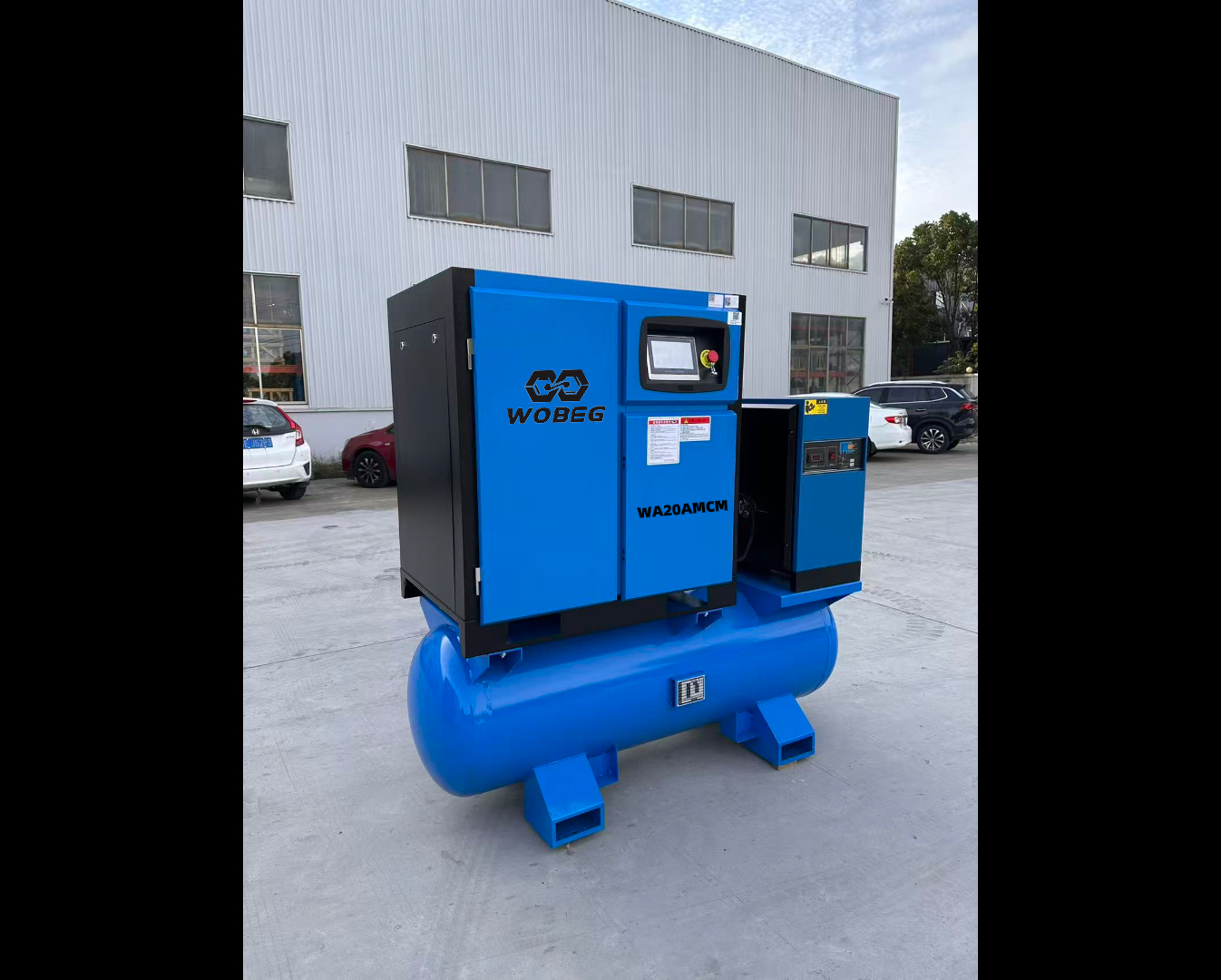

Advantages: Integrated design, easy installation
1. Eliminates the hassle for customers to provide their own air tanks, refrigerated dryers, and filters, avoids the trouble of pipeline installation, and removes the inconvenience of dealing with multiple suppliers.
2. Permanent magnet variable frequency screw air compressor ensures stable working pressure at all times.

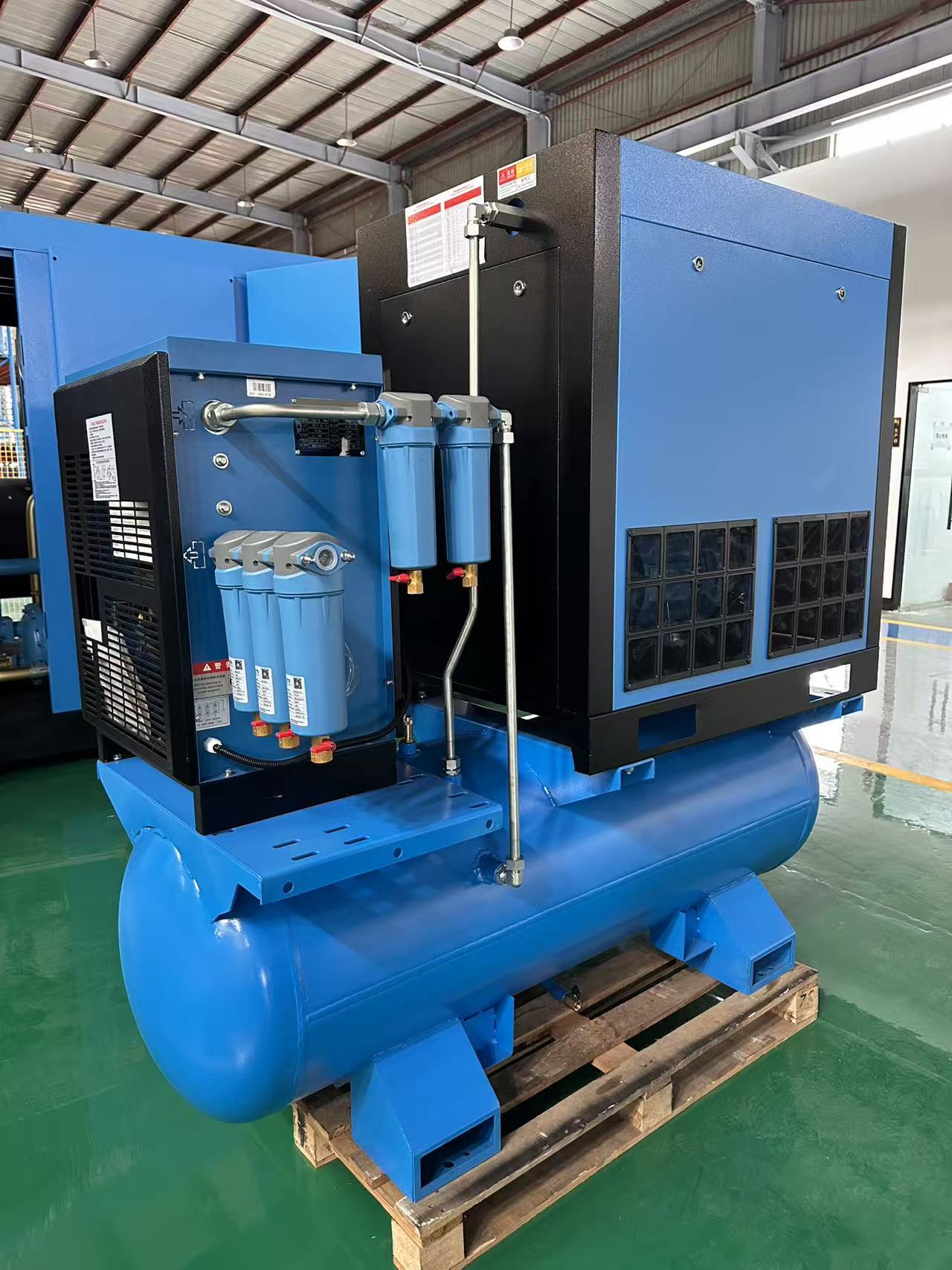

3. Uses a high-efficiency plate-type refrigerated dryer and 4-stage high-efficiency precision filters to ensure pure compressed air, with a pressure dew point as low as 2-8°C. Post-treatment uses stainless steel piping to avoid secondary contamination.

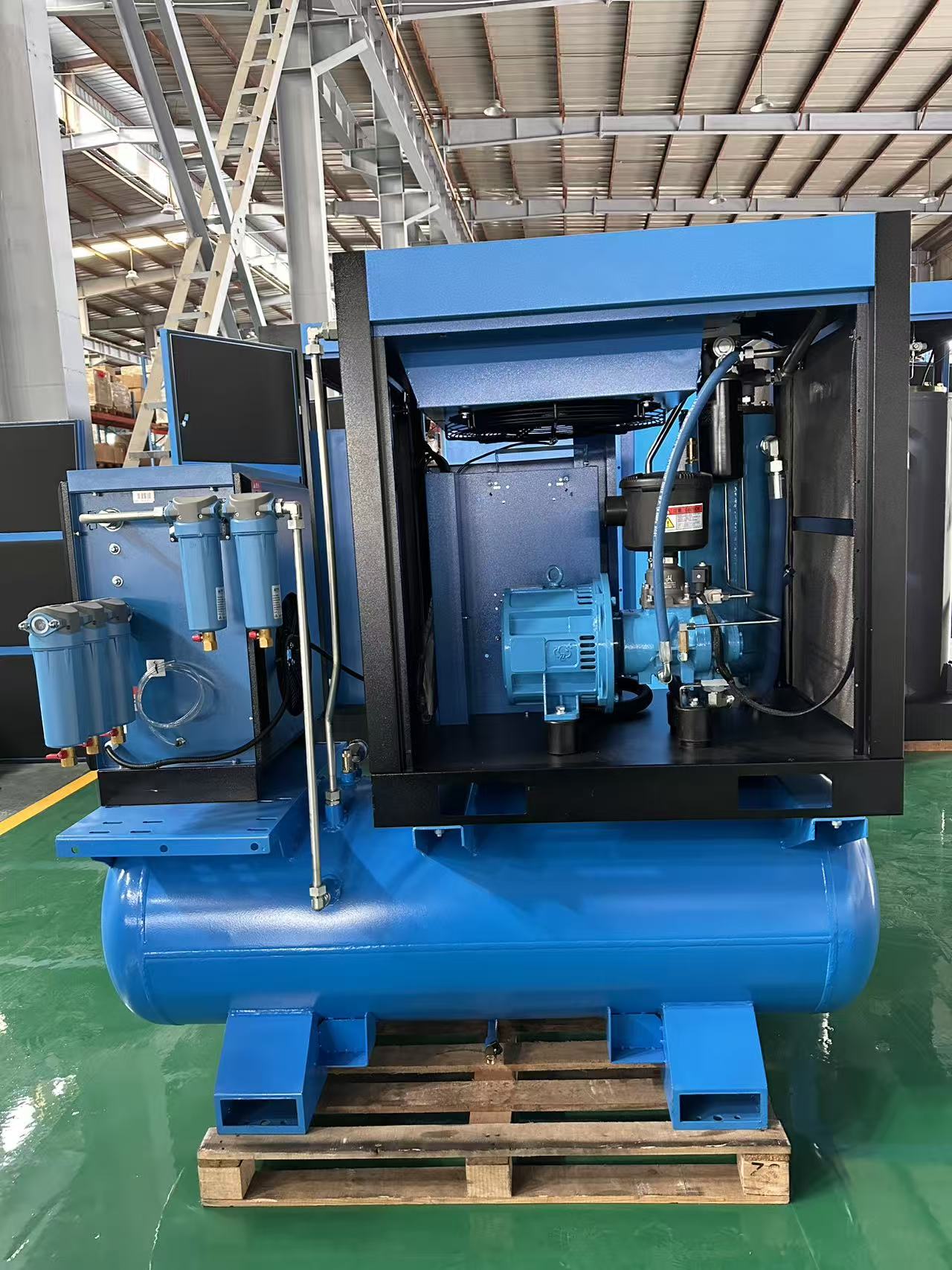

4. Main oil pipes use flexible connections, effectively reducing vibration and noise, with an operating noise <70dB. Using a permanent magnet variable frequency allows better control of oil temperature, avoids emulsification, enables centralized drainage in post-treatment, and keeps the customer's site clean.
Special for laser cutting ----- Permanent magnet variable frequency screw air compressor technical parameters.
Model
| Power
(kw) | Pressure
(Mpa) | Volume flow
(m3/min) | Pipe Diameter
| Weight
(kg) | Dimension
(mm) |
WA10AM | 7.5 | 1.55 | 0.6 | G1/2 | 180/355 | 800*650*860/组合机1500*670*1430 |
WA15AM | 11 | 1.6 | 0.9 | G3/4 | 300/570 | 1000*750*1000/组合机1800*750*1770 |
WA20AM | 15 | 1.6 | 1.2 | G3/4 | 32090 | 1000*750*1070/组合机1800*750*1770 |
2.0 | 1.0 |
WA30AM | 22 | 1.6 | 2.0 | G1 | 420/690 | 1100*850*1140/组合机1800*850*1930 |
2.0 | 1.7 |
WA40AM | 30 | 1.6 | 2.5 | G1 | 450/720 | 1070*850*1140/组合机1800*850*1930 |
2.0 | 2.2 |
WA50AM | 37 | 1.6 | 3.4 | G1 1/2 | 600/930 | 1200*1000*1390/组合机1990*980*1970 |
2.0 | 3.2 |
WA60AM | 45 | 1.6 | 4.0 | G1 1/2 | 50 | 1500*1000*1350 |
2.0 | 3.5 |
WA75AM | 55 | 1.6 | 5.9 | G2 1/2 | 900 | 1700*1210*1550 |
2.0 | 4.2 |
WA100AM | 75 | 1.6 | 1 | G2 1/2 | 1050 | 1700*1210*1550 |
2.0 | 6.5 |
WA125AM | 90 | 1.6 | 9.5 | G2 1/2 | 1200 | 1700*1210*1550 |
2.0 | 8.5 |
WA150AM | 110 | 1.6 | 12.5 | DN80 | 2500 | 2600*1900*1890 |
2.0 | 9.8 |
WA50AMII | 37 | 1.6 | 3.6 | G1 1/2 | 700 | 1400*1100*1450 |
WA60AMII | 45 | 1.6 | 5.3 | G2 1/2 | 1100 | 2100*1400*1650 |
WA75AMII | 55 | 1.6 | 6.5 | G2 1/2 | 1250 | 2100*1440*1650 |
WA100AMII | 75 | 1.6 | 9.0 | G2 1/2 | 1300 | 2100*1440*1650 |
WA125AMII | 90 | 1.6 | 11.2 | DN80 | 2600 | 2600*1900*1890 |
WA150AMII | 110 | 1.6 | 15.0 | DN80 | 2700 | 2600*1900*1890 |
WA180AMII | 132 | 1.6 | 18.5 | DN100 | 3900 | 3250*2100*2200 |
WA220AMII | 160 | 1.6 | 1.0 | DN100 | 4000 | 3250*2100*2200 |
